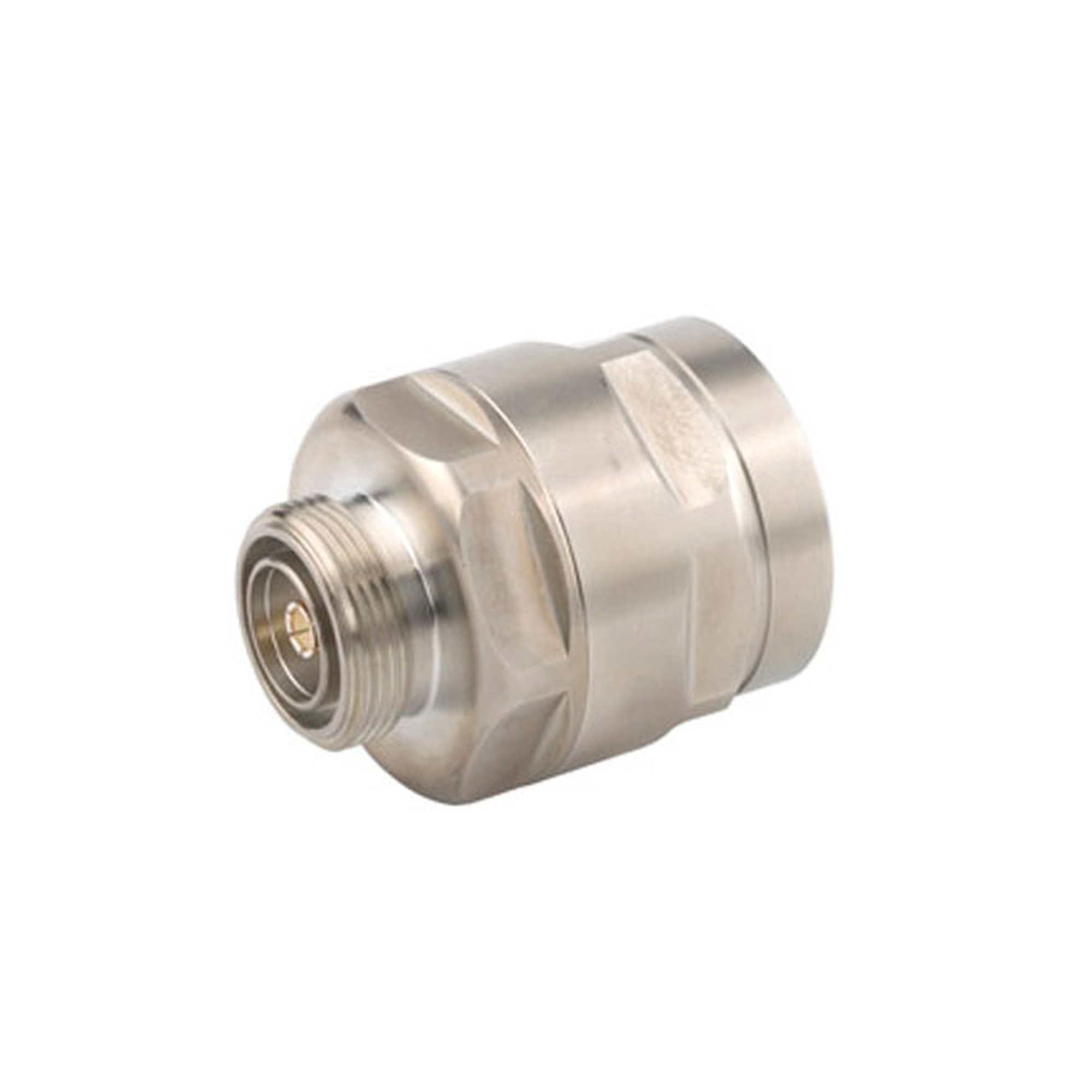

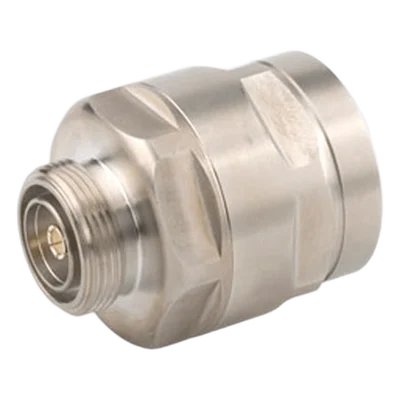

Conector 7-16 DIN Hembra para FXL 1480 Y AVA650

Outer Contact Attachment Method	Clamp
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Silver
Attachment Durability	25 cycles
Interface Durability	50 cycles
Interface Durability Method	IEC 61169-4:9.5
Connector Retention Tensile Force	1334 N \| 300 lbf
Connector Retention Torque	8.13 N-m \| 72.00 in lb
Insertion Force	200.17 N \| 45.00 lbf
Insertion Force Method	IEC 61169-1:15.2.4
Pressurizable	No
